[iOS] UIViewController로 화면 만들기

이 글에서 UIViewController로 원하는 화면을 만들고 앱의 첫 화면으로 연결하는 방법을 알아보겠습니다.



먼저 코드로 UI를 구성하는 방법을 아래 링크에서 보고 오시는 것을 추천 드립니다.

https://swjsw.tistory.com/64

[Xcode] 스토리보드 없이 코드로 UI 구현하기



1. UIViewController을 상속받아 화면 클래스를 만듭니다.

    아래와 같이 화면을 구성합니다.

import UIKit

class FlashlightViewController: UIViewController {

    private let imageView1 = UIImageView()
    private let imageView2 = UIImageView()

    override func viewDidLoad() {
        super.viewDidLoad()
        // Do any additional setup after loading the view.
        attribute()
        layout()
    }

    private func attribute() {
        self.view.backgroundColor = .systemMint

        imageView1.image = UIImage(named: "torch_off")
        imageView1.contentMode = .scaleAspectFit

        imageView2.image = UIImage(named: "power_off")
        imageView2.contentMode = .scaleAspectFit

    }

    private func layout() {

        let spacing: CGFloat = 100

        self.view.addSubview(imageView1)

        // Enable Auto Layout for the image view
        imageView1.translatesAutoresizingMaskIntoConstraints = false

        NSLayoutConstraint.activate([
            imageView1.centerXAnchor.constraint(equalTo: view.centerXAnchor),
            imageView1.topAnchor.constraint(equalTo: view.topAnchor, constant: 200),
            imageView1.widthAnchor.constraint(equalToConstant: 100),
            imageView1.heightAnchor.constraint(equalToConstant: 100)
        ])

        self.view.addSubview(imageView2)
        // Enable Auto Layout for the second image view
        imageView2.translatesAutoresizingMaskIntoConstraints = false

        NSLayoutConstraint.activate([
            imageView2.centerXAnchor.constraint(equalTo: view.centerXAnchor),
            imageView2.topAnchor.constraint(equalTo: imageView1.bottomAnchor, constant: spacing),
            imageView2.widthAnchor.constraint(equalToConstant: 200),
            imageView2.heightAnchor.constraint(equalToConstant: 200)
        ])
    }
}

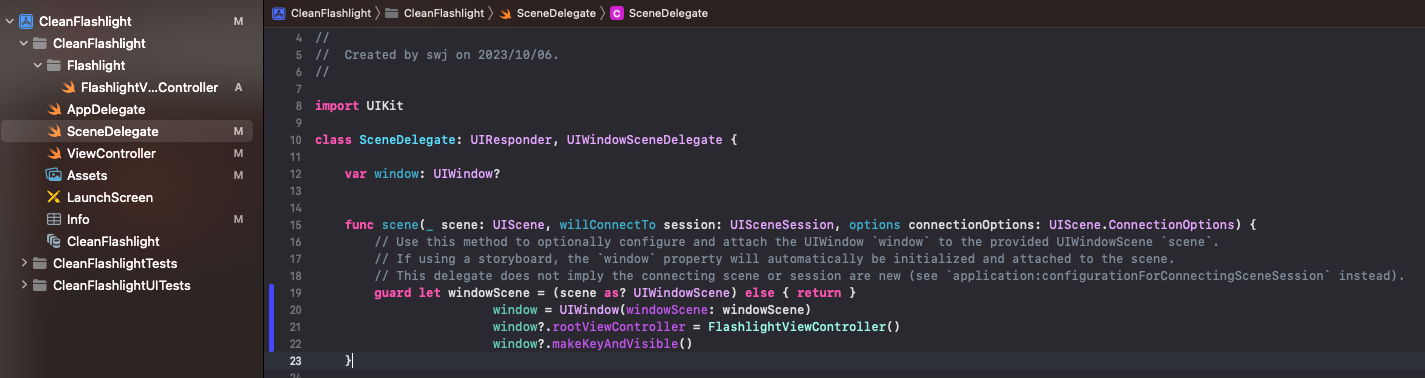

2. SeneDelegate에서 새로 만든 화면 클래스를 연결해 줍니다.



func scene(_ scene: UIScene, willConnectTo session: UISceneSession, options connectionOptions: UIScene.ConnectionOptions) {
        // Use this method to optionally configure and attach the UIWindow `window` to the provided UIWindowScene `scene`.
        // If using a storyboard, the `window` property will automatically be initialized and attached to the scene.
        // This delegate does not imply the connecting scene or session are new (see `application:configurationForConnectingSceneSession` instead).
        guard let windowScene = (scene as? UIWindowScene) else { return }
                        window = UIWindow(windowScene: windowScene)
                        window?.rootViewController = FlashlightViewController()
                        window?.makeKeyAndVisible()
    }

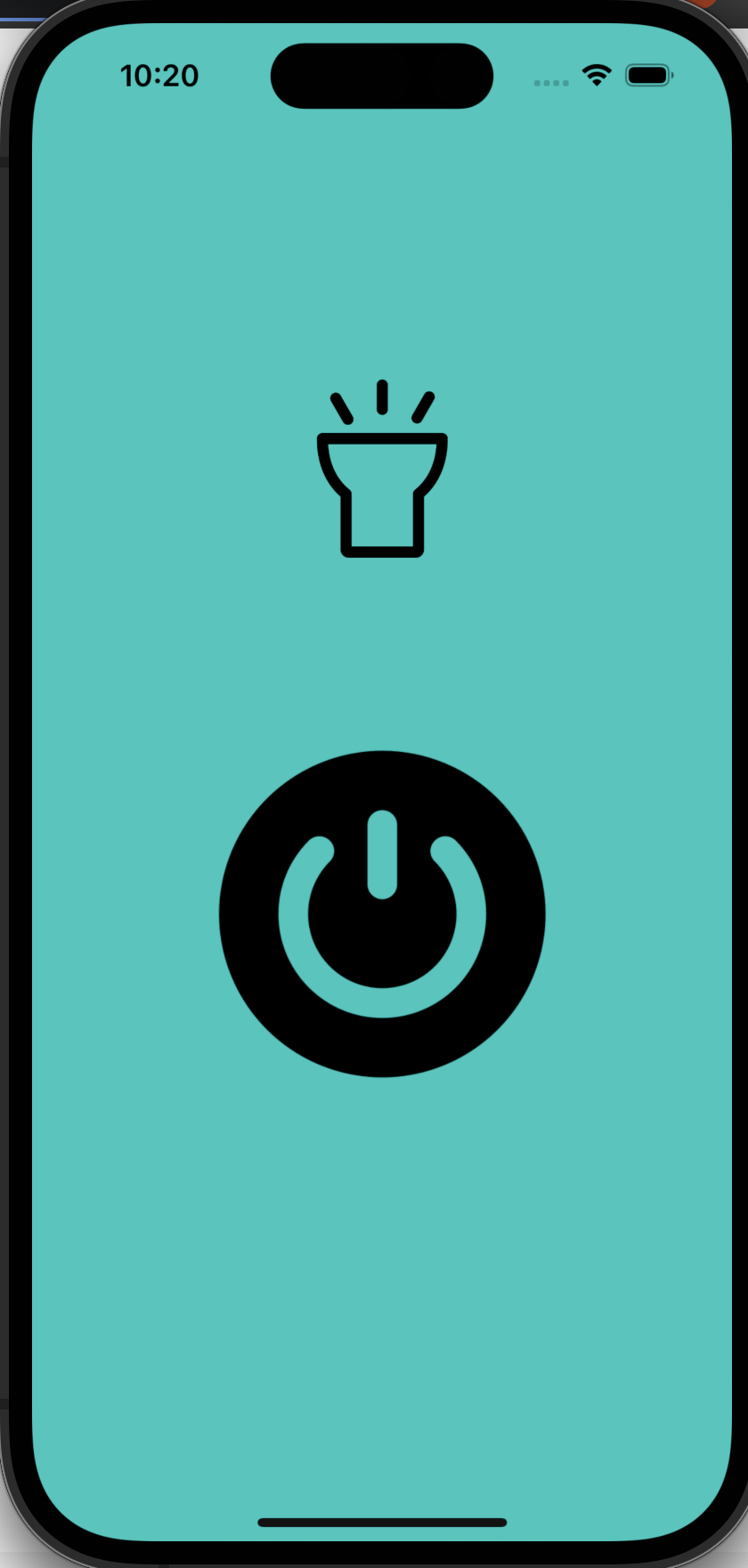

3. 시뮬레이터에서 확인합니다.
